Dialogs and Notifications

We will use the DialogPrefab mechanism from Asv.Avalonia to create modal windows that can be invoked directly from the ViewModel.

Place the RecipeEditDialogViewModel in the Dialogs directory of your project.

// RecipeEditDialogViewModel.cs

using System.Collections.Generic;
using Asv.Avalonia;
using Asv.Common;
using Microsoft.Extensions.Logging;
using R3;

namespace RecipeBook.ViewModels;

public class RecipeEditDialogViewModel : DialogViewModelBase
{
	public const string DialogId = $"{BaseId}.recipe_edit";

    public RecipeEditDialogViewModel(ILoggerFactory loggerFactory)
        : base(DialogId, loggerFactory)
    {
        Title = new BindableReactiveProperty<string?>().DisposeItWith(Disposable);
        Category = new BindableReactiveProperty<string?>().DisposeItWith(Disposable);
    }

    public BindableReactiveProperty<string?> Title { get; }
    public BindableReactiveProperty<string?> Category { get; }

    public override IEnumerable<IRoutable> GetChildren()
    {
        return [];
    }
}

Define RecipeEditDialogPrefab to handle data exchange with the dialog, enabling both payload injection and result retrieval.

// RecipeEditDialogPrefab.cs

using System.Composition;
using System.Threading.Tasks;
using Asv.Avalonia;
using Microsoft.Extensions.Logging;

namespace RecipeBook.ViewModels;

public sealed class RecipeEditDialogPayload
{
	public required string Title { get; init; }
	public required string Category { get; init; }
}

[ExportDialogPrefab]
[Shared]
[method: ImportingConstructor]
public sealed class RecipeEditDialogPrefab(INavigationService nav, ILoggerFactory loggerFactory)
	: IDialogPrefab<RecipeEditDialogPayload, RecipeEditDialogPayload?>
{
	public async Task<RecipeEditDialogPayload?> ShowDialogAsync(RecipeEditDialogPayload dialogPayload)
    {
        using var vm = new RecipeEditDialogViewModel(loggerFactory);

        vm.Title.Value = dialogPayload.Title;
        vm.Category.Value = dialogPayload.Category;

        var dialogContent = new ContentDialog(vm, nav)
        {
            Title = dialogPayload.Title,
            PrimaryButtonText = RS.DialogButton_Yes,
            SecondaryButtonText = RS.DialogButton_No,
            DefaultButton = ContentDialogButton.Primary,
        };

        var result = await dialogContent.ShowAsync();
        if (result != ContentDialogResult.Primary)
        {
            return null;
        }

        return new RecipeEditDialogPayload
        {
            Title = vm.Title.Value,
            Category = vm.Category.Value
        };
    }
}

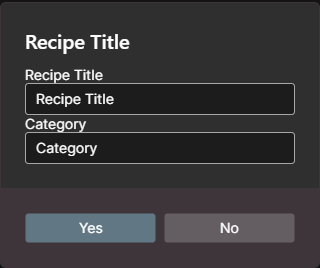

Design the RecipeEditDialogView layout to allow users to input the recipe title and category during creation.

 <!-- RecipeEditDialogView.axaml -->

<UserControl xmlns="https://github.com/avaloniaui"
			 xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
			 xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
			 xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
			 xmlns:viewModels="clr-namespace:RecipeBook.ViewModels"
			 mc:Ignorable="d"
			 d:DesignWidth="800"
			 d:DesignHeight="450"
			 x:Class="RecipeBook.Views.RecipeEditDialogView"
			 x:DataType="viewModels:RecipeEditDialogViewModel">

	<StackPanel>
		<TextBlock Text="Recipe Title" />
		<TextBox Text="{CompiledBinding Title.Value}" />

		<TextBlock Text="Category" />
		<TextBox Text="{CompiledBinding Category.Value}" />
	</StackPanel>
</UserControl>

//RecipeEditDialogView.axaml.cs

using Asv.Avalonia;
using Avalonia.Controls;
using RecipeBook.ViewModels;

namespace RecipeBook.Views;

[ExportViewFor(typeof(RecipeEditDialogViewModel))]
public partial class RecipeEditDialogView : UserControl
{
	public RecipeEditDialogView()
	{
		InitializeComponent();
	}
}

Inside RecipePageViewModel, add a field to store the dialog prefab retrieved from the dialog service, along with a command to create a new recipe.

    private readonly RecipeEditDialogPrefab _recipeEditDialog;
   	public ReactiveCommand CreateRecipeCommand { get; }

Initialize the command and retrieve DialogPrefab in RecipePageViewModel constructor.

      _recipeEditDialog = dialogService.GetDialogPrefab<RecipeEditDialogPrefab>();
	  CreateRecipeCommand = new ReactiveCommand(CreateRecipeAsync).DisposeItWith(Disposable);

Define the handler for the recipe creation process.

// RecipePageViewModel.cs

	private async ValueTask CreateRecipeAsync(Unit unit, CancellationToken cancellationToken)
	{
		var payload = new RecipeEditDialogPayload
		{
			Title = "Recipe Title",
			Category = "Category",
		};

		var createdRecipePayload = await _recipeEditDialog.ShowDialogAsync(payload);

		if (createdRecipePayload == null)
		{
			return;
		}

		var recipeViewModel = new RecipeViewModel(
            Guid.NewGuid().ToString(),
			createdRecipePayload.Title,
			createdRecipePayload.Category,
			string.Empty,
			[],
			_loggerFactory
        );

		_recipes.Add(recipeViewModel);
		SelectedRecipe.Value = recipeViewModel;
	}

Place the "Add Recipe" button immediately after the recipe list container within the sidebar RecipePageView.

<!-- Recipe list -->
...
<!-- Add recipe -->
<Border Grid.Row="2"
	Padding="15"
	BorderBrush="#333"
	BorderThickness="0,1,0,0">
	<Button HorizontalAlignment="Stretch"
		Background="#3C3C3C"
		HorizontalContentAlignment="Center"
		Command="{Binding CreateRecipeCommand}"
		CornerRadius="4">
		<StackPanel Orientation="Horizontal"
			Spacing="8">
			<TextBlock Text="+"
				FontWeight="Bold"
				Foreground="#4CC2FF" />
			<TextBlock Text="Add Recipe"
				Foreground="#DDD" />
		</StackPanel>
	</Button>
</Border>
...

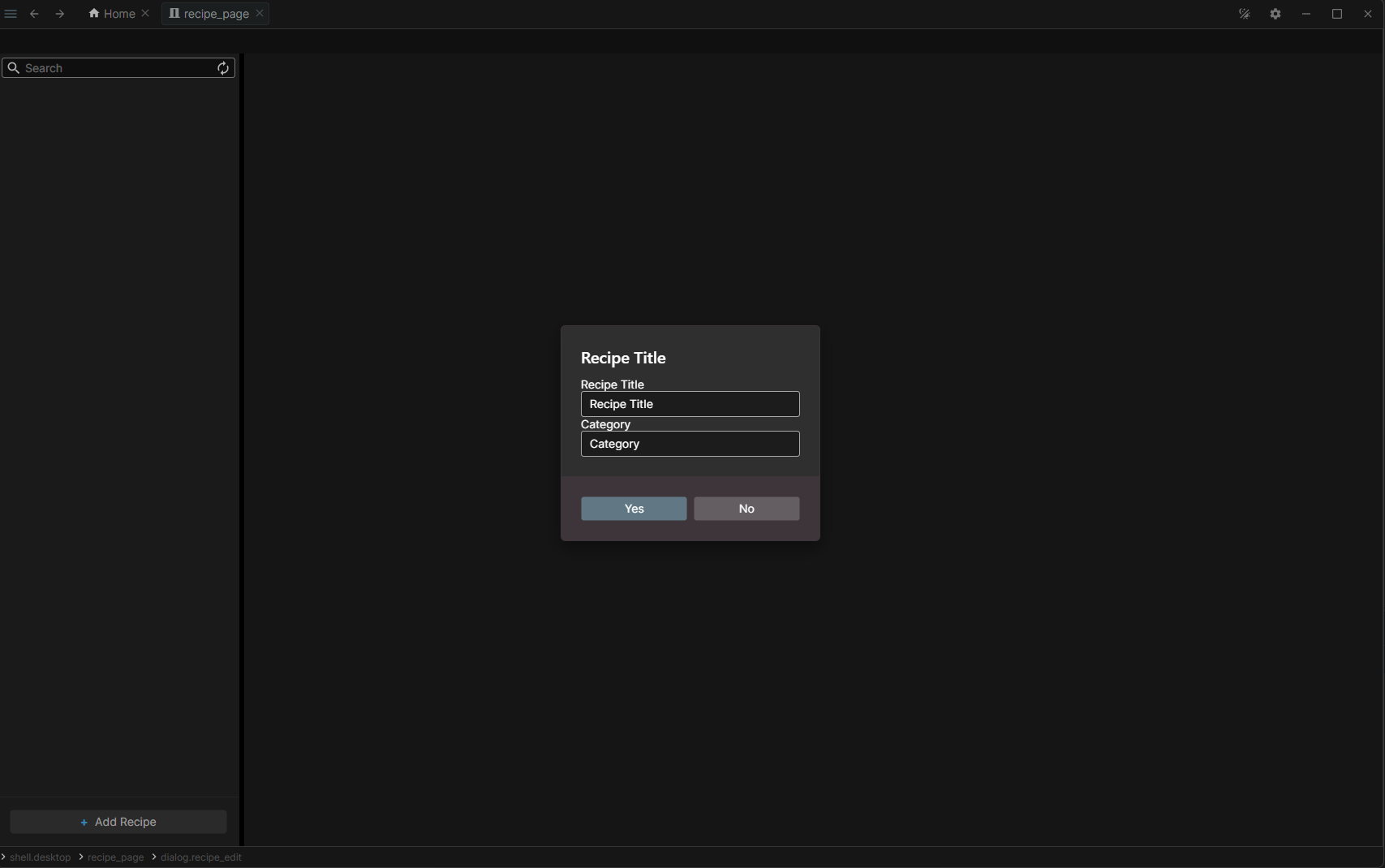

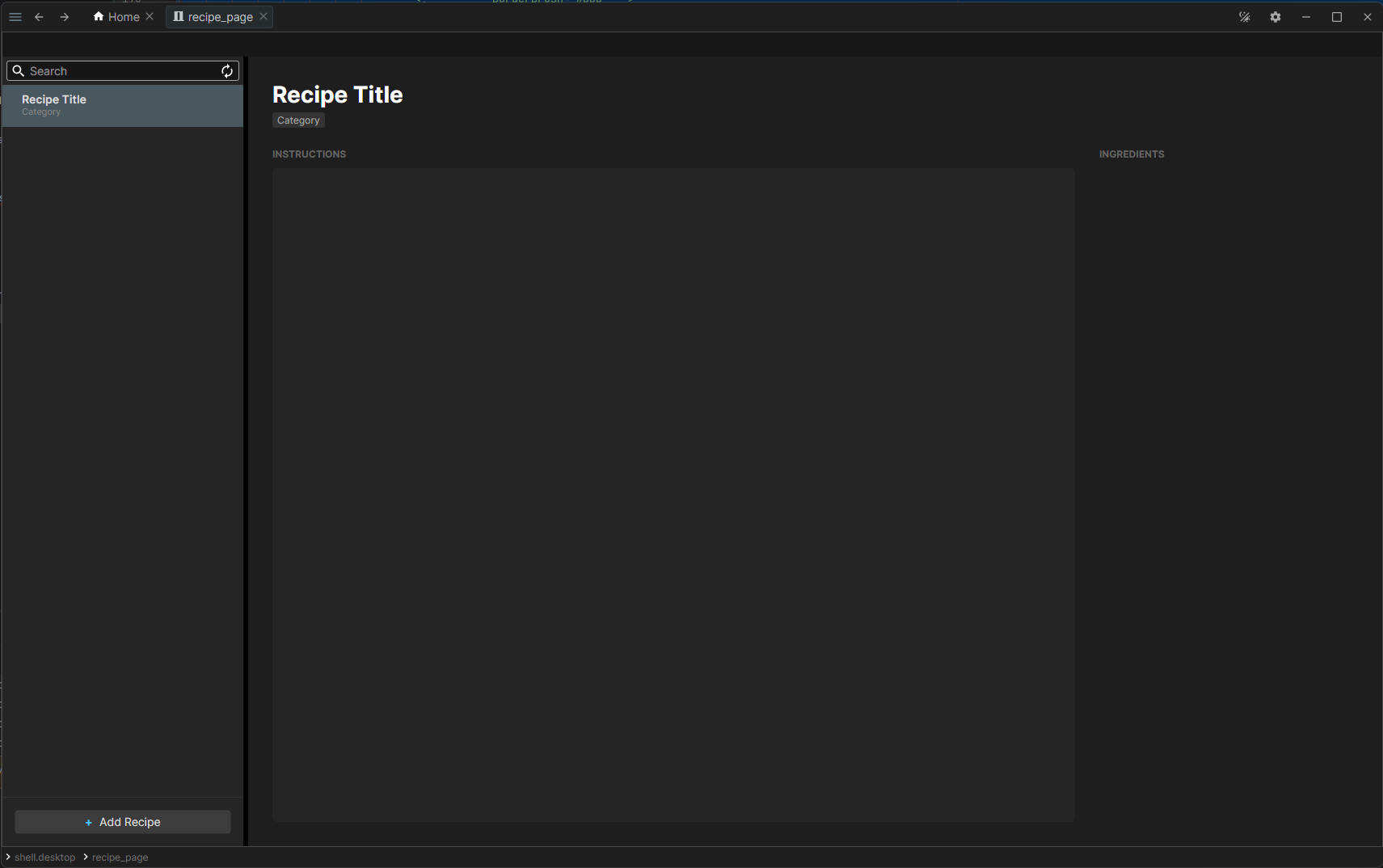

Overview of recipe adding

Notifications

Let's implement the notification system, starting with a confirmation message when an ingredient is added. But first, we need to ensure we can create recipes.

The "Add Ingredient" button:

...
<StackPanel Spacing="10">
	<!-- Ingredient list -->
	<ItemsControl ItemsSource="{Binding SelectedRecipe.Value.Ingredients}">
    ...
	</ItemsControl>

	<!-- Add ingredient -->
	<Button HorizontalAlignment="Stretch"
		Background="Transparent"
		BorderBrush="#333"
		BorderThickness="1"
		CornerRadius="4"
	    Command="{Binding  SelectedRecipe.Value.CreateIngredientCommand}"
		Padding="10">
		<StackPanel Orientation="Horizontal"
			HorizontalAlignment="Center"
			Spacing="6">
			<TextBlock Text="+"
				Foreground="#555" />
			<TextBlock Text="Add Ingredient"
				Foreground="#666"
				FontSize="12" />
		</StackPanel>
	</Button>
</StackPanel>
...

Add the ingredient creation command to RecipeViewModel:

public ReactiveCommand CreateIngredientCommand { get; }

Add an initialization in RecipeViewModel constructor:

	CreateIngredientCommand = new ReactiveCommand(AddIngredientAsync).DisposeItWith(Disposable);

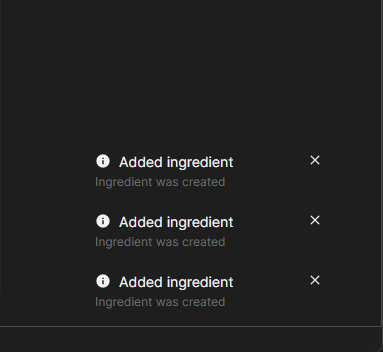

Handle ingredient addition and send a toast notification:

	public async ValueTask AddIngredientAsync(Unit unit, CancellationToken cancellationToken)
	{
		var ingredient = new IngredientViewModel(
            Guid.NewGuid().ToString(),
            "Ingredient",
            string.Empty,
            _loggerFactory
        );
		_ingredients.Add(ingredient);

		var msg = new ShellMessage(
			"Added ingredient",
			"Ingredient was created",
			ShellErrorState.Normal,
			"This is description",
			MaterialIconKind.Info
		);

		await this.RaiseShellInfoMessage(msg, cancellationToken);
	}

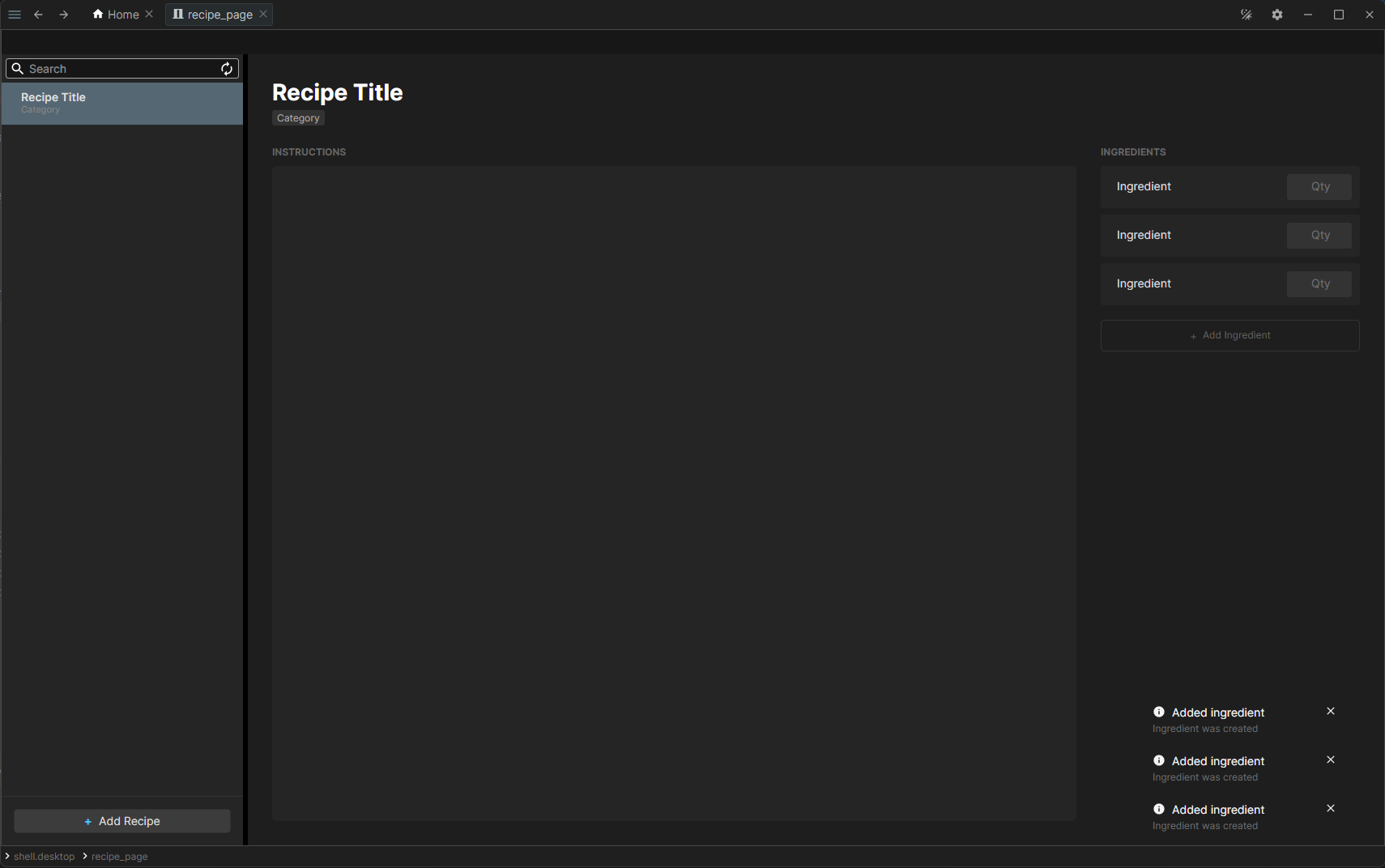

Notification on Recipe Creation

Events

Removing Ingredients

We need to notify the parent viewmodel that an ingredient has been removed. To achieve this, create a RemoveIngredientEvent in the Events directory at Pages directory.

// RemoveIngredientEvent.cs

using System.Threading;
using System.Threading.Tasks;
using Asv.Avalonia;
using Asv.Common;

namespace RecipeBook.Events;

public sealed class RemoveIngredientEvent(IRoutable source) : AsyncRoutedEvent<IRoutable>(source, RoutingStrategy.Bubble);

public static class RemoveIngredientEventMixin
{
	public static ValueTask RequestRemoveIngredient(this IRoutable src, CancellationToken cancel = default)
	{
		return src.Rise(new RemoveIngredientEvent(src), cancel);
	}
}

Add the DeleteIngredientCommand to the IngredientViewModel.

public ReactiveCommand DeleteIngredientCommand { get; }

Initialize the command in the constructor:

...
    public IngredientViewModel(string id, string name, string amount, ILoggerFactory loggerFactory)
		: base(new NavigationId(BaseId, id), loggerFactory)
	{
        ...
		Amount = new HistoricalStringProperty(
                nameof(Amount),
                _amount,
                loggerFactory
            ).SetRoutableParent(this)
            .DisposeItWith(Disposable);

        // new command
		DeleteIngredientCommand = new ReactiveCommand(RemoveIngredientAsync).DisposeItWith(Disposable);
	}
...

Raise the event using the extension method defined in RemoveIngredientEvent.

	private async ValueTask RemoveIngredientAsync(Unit unit, CancellationToken cancellationToken)
	{
		await this.RequestRemoveIngredient(cancellationToken);
	}

Intercept the bubbling events by implementing InternalCatchEvent in the RecipeViewModel.

private ValueTask InternalCatchEvent(IRoutable src, AsyncRoutedEvent<IRoutable> e)
	{
		if (e is not RemoveIngredientEvent)
		{
			return default;
		}

		var vm = _ingredients.First(i => i.Id == e.Sender.Id);
		_ingredients.Remove(vm);

		return default;
	}

Subscribe to events in RecipeViewModel constructor.

...
	public RecipeViewModel(string id, string title, string? category, string? instruction,
        IEnumerable<IngredientViewModel> ingredients, ILoggerFactory loggerFactory)
		: base(new NavigationId(BaseId, id), loggerFactory)
	{
        ...
	    CreateIngredientCommand = new ReactiveCommand(AddIngredientAsync).DisposeItWith(Disposable);

        // here we subscribe to events
		Events.Subscribe(InternalCatchEvent).DisposeItWith(Disposable);
	}
...

Add the delete button to RecipePageView.axaml.

...
<!-- Ingredient list -->
<ItemsControl ItemsSource="{Binding SelectedRecipe.Value.Ingredients}">
    <ItemsControl.ItemTemplate>
        <DataTemplate>
            <Border Background="#252526"
                    CornerRadius="4"
                    Margin="0,0,0,8"
                    Padding="10">
                <Grid ColumnDefinitions="*, 10, 80, Auto">
                    ...
                    <!-- Delete -->
                    <Button Grid.Column="3"
                            Margin="5,0,0,0"
                            Background="Transparent"
                            Foreground="#666"
                            Command="{Binding DeleteIngredientCommand}"
                            Padding="5">
                        <TextBlock Text="×"
                                   FontSize="18"
                                   Margin="0,-3,0,0" />
                    </Button>
                </Grid>
            </Border>
        </DataTemplate>
    </ItemsControl.ItemTemplate>
</ItemsControl>
...
